Plug & Cap Masking Consumables

Use of masking products during the Metal Spray process enables the operator the ability to coat particular sections of a component without the possibility of overspray onto areas outside of the designated spray area. This is especially helpful with intricate spray jobs that either require thicker coatings in particular areas and/or where only particular areas are to be coated.

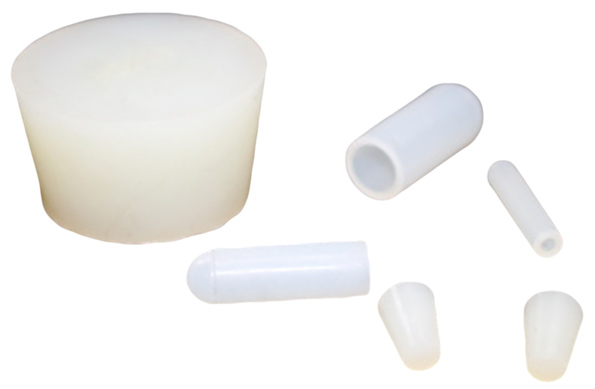

MSSA supply plugs and caps for masking slotted holes, threaded and un-threaded holes, studs and tube ends. These V-shaped tapered plugs provide an excellent seal of holes and withstand continuous operating temperatures up to 315oC. Our plug and cap consumables are clear and do not contain harmful colouring agents.

See below for available sizes, and quantities.

 MSSA Plug and Cap Masking Parts List

Plugs    Caps

Part No.

 Bottom ⌀ (mm) Top ⌀ (mm) Length(mm) QTY per bag   Part No. Inside ⌀ (mm)

Outside
⌀ (mm)

 Length(mm) QTY per bag
CSP99 0.75 3.17 15.87 1000   SM070 1.78 4.32 25.40 1000
CSP100 1.59 3.17 15.87 1000   SM080 2.03 5.08 19.05 1000
CSP101 1.59 4.76 15.87 1000    SM093 2.37 4.96 19.05 1000
CSP101XL 1.59 4.76 19.05 1000   SM093-1000 2.37 5.41 25.40 1000
CSP102 3.17 6.35 19.05 1000   SM100 2.54 5.08 25.40 1000
CSP103XL 4.76 8.73 25.40 1000   SM109-750 2.77 5.47 19.05 1000
CSP104 6.35 9.52 19.05 100   SM125 3.18 6.35 25.40 1000
CSP105 6.35 9.52 12.70 100   SM125-0500 3.18 6.35 12.70 1000
CSP106 8.73 11.11 17.46 100   SM148 3.76 6.10 25.40 1000
CSP107 9.53 14.28 25.40 100   SM148-0500 3.76 6.80 19.50 1000
CSP00 10.31 15.08 25.40 100   SM156-0500 3.96 7.11 12.70 1000
CSP108 11.11 15.87 20.64 100   SM156 3.97 7.12 25.40 1000
CSP1 14.28 19.05 25.40 100   SM172-0500 4.37 7.01 12.70 1000
CSP2 15.87 19.84 25.40 100   SM172-1500 4.37 7.62 38.10 1000
CSP4 19.84 25.40 25.40 100   SM187 4.75 8.00 25.40 1000
CSP5 23.02 26.99 25.40 100   SM187-0500 4.75 8.01 12.70 1000
CSP6 26.19 31.75 25.40 100   SM223 5.66 8.76 25.40 1000
CSP6.5 27.00 33.34 25.40 100   SM223 5.66 8.76 38.10 1000
CSP7 30.15 36.51 25.40 25   SM234 5.94 9.14 25.40 1000
CSP8 33.32 41.27 25.40 25   SM234-1500 5.95 9.15 38.10 1000
CSP8.5 35.72 42.86 25.40 25   SM250-1000 6.35 9.66 25.40 1000
CSP9 37.31 44.45 25.40 25   SM281-1000 7.14 10.16 25.40 1000
CSP9.5 38.10 46.04 25.40 25   SM295-1500 7.50 10.67 38.10 1000
CSP10 41.28 50.01 25.40 25   SM312-1000 7.50 11.18 25.40 1000
CSP11 47.62 55.95 25.40 10   SM375 9.53 12.83 25.40 1000
CSP12 53.98 63.50 25.40 10   SM456-1500 11.59 14.76 38.10 1000
CSP13 57.94 68.26 25.40 10   SM468 11.89 15.06 25.40 1000
CSP14 76.20 88.90 38.10 1    SM480-1500 12.2 15.37 38.10 1000
            SM535-1500 13.59 16.13 38.10 250
            SM562-1500 14.28 17.43 38.10 250
             SM625-1500 15.88 19.05 38.10 250
            SM687-1500 17.45 20.63 38.10 250
            SM750-1500  19.05 22.23 38.10 100
            SM780-1500  19.82 22.99 38.10 250
            SM812-1500  20.63 23.80 38.10 250
            SM937-1500 23.80 26.98 38.10 250
            SM1000-1500  25.40 28.58 38.10 250
            SM1000-2000  25.40 28.58 50.80 250
            SM1062-2000  26.98 30.15 50.80 100
            SM1125-1500  28.58 28.58 38.10 100
            SM1187 30.15 33.33 38.10 100
            SM1250 31.75 35.11 38.10 100
            SM1750-1500  44.45 47.63 38.10 100
            SM1875-2000  47.63 50.80 50.80 100
            SM2000-2000  50.80 53.98 50.80 100



For more information, details, samples or a demonstration of the process, call us on 07 3823 1004, or contact us via email on our Contact Form.
